Description and Application

SUPREME ELEMENTED DET is a delayed capsule head designed for use by combining it with a shock tube and rubber casing of the required length. It is used to produce non-electric capsules. There are primarily four types of Elemented DET, namely Type A, Type B, Type C, and Type D. The first two, Type A and Type B, are designed for surface mainline use. They are produced with low energy and millisecond delay. Type C and Type D are used for downhole applications.

Usage Recommendations

SUPREME ELEMENTED DET is assembled by placing it into a SUPREME TUBE for direct use. Explosives of Type A and Type B consist of low energy millisecond delay explosives found in a plastic connector block. It is designed for surface delay in non-electric blasting setups in quarries, surface coal mines, open-pit mines, and construction projects. Capsules of Type B, Type C, and Type D, used with shock tubes and other non-electric delay systems, provide flexibility and ease of use, offering both short delay and long delay non-electric firing systems for blasting designs.

Advantages

Ready to use and easy to install, Provides a solution to stock costs and stock mix-up, Reduces operating and shipping costs, Can be used in all weather conditions.

Technical Specifications

PRODUCT	TYPE A	TYPE B	TYPE C	TYPE D
Case Material	Aluminum	Aluminum	Aluminum	Aluminum
Usage Condition	Surface (STL)	Surface (STL)	Downhole (DTH)	Long Delay Downhole (LPD)
Capsule Power	Only Primary Charge	Very Low	No:8	No:8
Delay Range (ms)	9 – 200 range	9 – 200	200 – 600	100 – 9,000



Storage

Explosives should be stored in accordance with the “Regulation on Non-Monopolized Explosives and Related Articles” under Decision No. 87/12028. For best results, store in a well-ventilated, approved explosive material warehouse at moderate temperatures and dry conditions. When stored in a cool, dry, well-ventilated explosive storage facility, SUPREME ELEMENTED DET has a shelf life of 2 years from the production date. However, exposure to extreme hot or cold conditions may cause early degradation of the product.

Shipping Information

Trade Name: SUPREME ELEMENTED DET UN Number: 0029 UN Class: 1.1B Appropriate Shipping Name: NON-ELECTRIC CAPSULES, for blasting

Disposal Method

  Disposal of explosives is a hazardous operation and requires special training. The methods used for safe disposal may vary depending on the case and the conditions in which the operations are conducted. For more information, please contact your local Solar representative.

Packaging

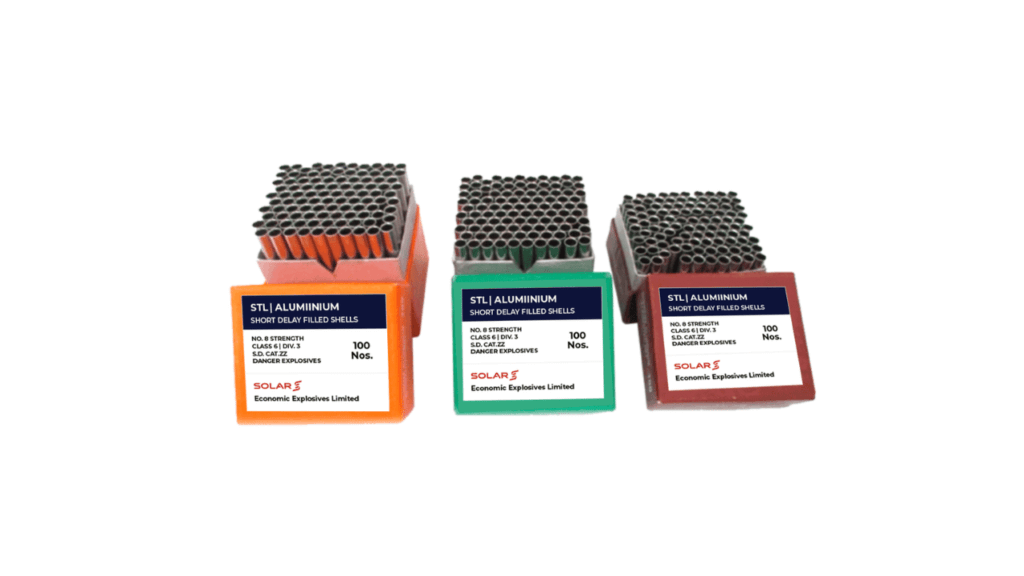

  SUPREME ELEMENTED DET is packaged in carton boxes containing 100 units. These cartons are vacuum sealed in polyethylene bags of 3 units each. For STL, 8 packages are vacuum sealed; for DTH and LPD, 4 packages are vacuum sealed, all packed in a carton box padded on all sides.

PRODUCT	INNER PACKAGE (Units)	VACUUM BAG (Units)	OUTER PACKAGE (Units)
STL	100	300	2400
DTH	100	300	1200
LPD	100	300	1200
